Ultracapacitor CELL & MODULES
Contact Us

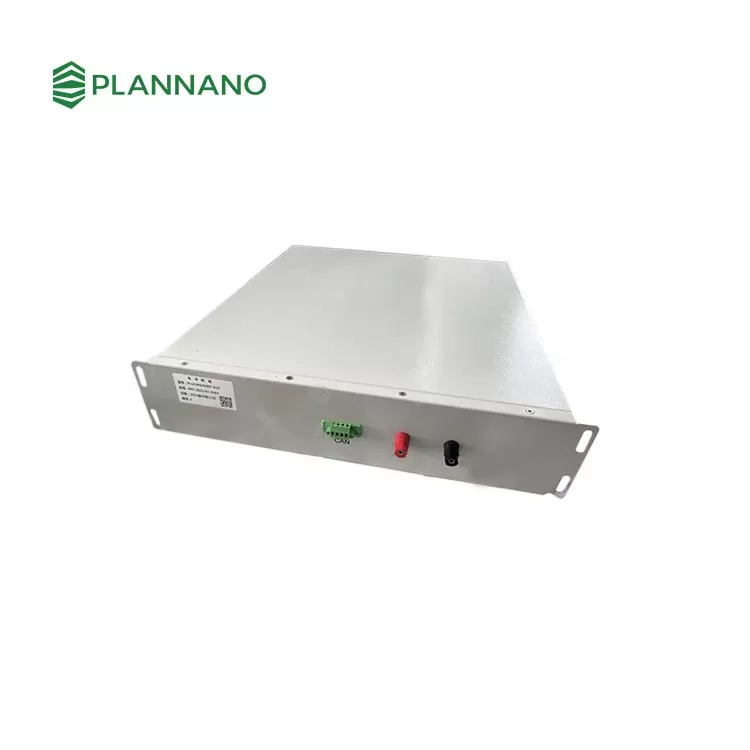

Plannano 64V 80F SuperCapacitor Module
64V 80F
1.000,000 CYCLE LIFE
-40℃ ~ +65℃ COPERATING TEMPERATURE
SAFETY ZERO SAFETY INCIDENTS
Technical Parameter
Product Mode
PLPF01400C0-0768 ROA
Detail Specifications
| Items | PLMC0080C0-0064R0A |
| Rated Capacitance | 80F |
| Capacitance Tolerance | 0% ~+20% |
Nominal voltage Vr | 64V DC |
Surge voltage Vs | 68.4V DC |
| Equivalent series resistance ESR | ≤16.8mΩ |
| Maximum continuous current IMCC (∆T=15℃) | 35A |
| Maximum continuous current IMCC (∆T=40℃) | 75A |
| Maximum peak current (1s)Imax | 200A |
| Short circuit current IS | 7600A |
| Leakage Current IL | 6mA |
| Self-discharge rate | ≥80% |
Plannano 64V 80F SuperCapacitor Module
Product Advantage
1.000,000 CYCLE LIFE
-40℃ ~ +65℃ COPERATING TEMPERATURE
SAFETY ZERO SAFETY INCIDENTS
