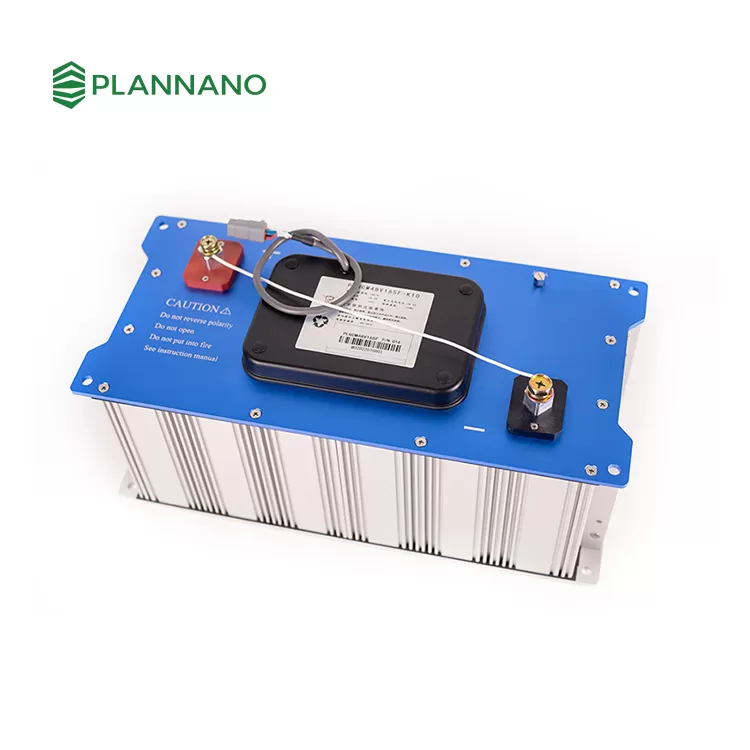

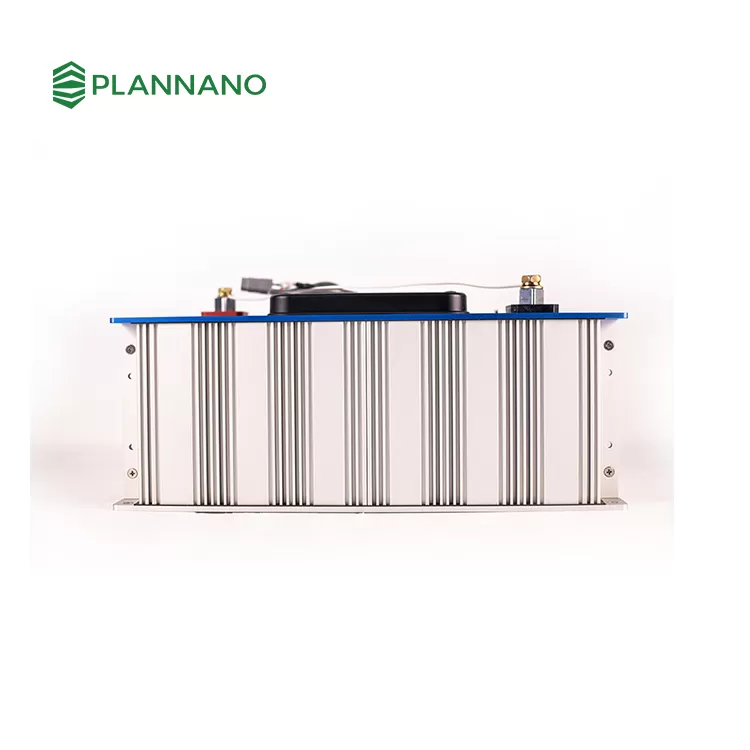

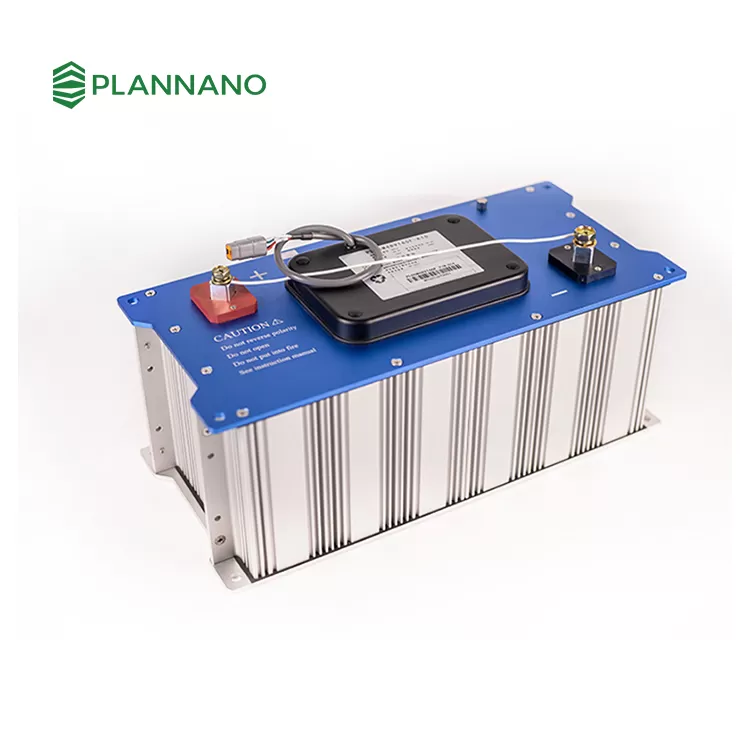

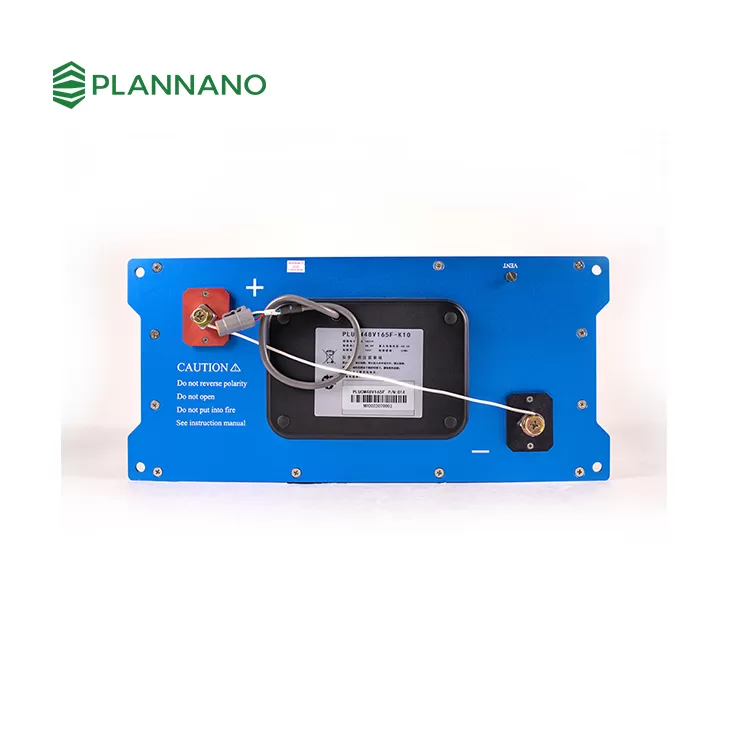

48V 165F SuperCapacitor Module
48V 165F
1.000,000 CYCLE LIFE
-40℃ ~ +65℃ COPERATING TEMPERATURE
SAFETY ZERO SAFETY INCIDENTS
Technical Parameter
Items
PLMC0165C0-0048R0A
Detail Specifications
| Items | PLMC0165C0-0048R0A |
| Rated Capacitance | 165F |
| Capacitance Tolerance | 0% ~+20% |
Max. Continuous Current (ΔT = 15℃ | 130A |
Max. Continuous Current (ΔT = 40℃) | 210A |
| ESR | 6mΩ |
| Maximum Leakage Current @25 ℃ | 6mA |
| Peak Current (1s) | 2000A |
| Maximum Energy Storage Emax | 54Wh |
| Rated Power Density | 3300W/kg |
| Peak Power Density | 6940W/kg |
| Available Power | 45000W |
| Energy Density, Mominal | 4.01Wh/kg |
| Weight | 15Kg |
| Maximum Short Circuit Current | 7700A |
| Surge Voltage | 51V DC |
| Insulation Voltage | 2500V DC |
Plannano 48V 165F SuperCapacitor Module
Product Advantage
1.000,000 CYCLE LIFE
-40℃ ~ +65℃ COPERATING TEMPERATURE
SAFETY ZERO SAFETY INCIDENTS
