Ultracapacitor CELL & MODULES
Contact Us
16V 500F SuperCapacitor Module
16V 500F
1.000,000 CYCLE LIFE
-40℃ ~ +65℃ COPERATING TEMPERATURE
SAFETY ZERO SAFETY INCIDENTS
Technical Parameter
Items
PLMC0500C0-0016R0A
Detail Specifications
| Items | PLMC0165C0-0048R0A |
| Rated Capacitance | 500F |
| Capacitance Tolerance | 0% ~+20% |
Max. Continuous Current (ΔT = 15℃ | 98A |
Max. Continuous Current (ΔT = 40℃) | 160A |
| ESR | 2.1mΩ |
| Maximum Leakage Current @25 ℃ | 5.2mA |
| Peak Current (1s) | 1970A |
| Maximum Energy Storage Emax | 18Wh |
| Rated Power Density | 2700W/kg |
| Peak Power Density | 5000W/kg |
| Available Power | 15000W |
| Energy Density, Mominal | 3.06Wh/kg |
| Weight | 6.0Kg |
| Maximum Short Circuit Current | 7700A |
| Surge Voltage | 51V DC |
| Insulation Voltage | 2500V DC |

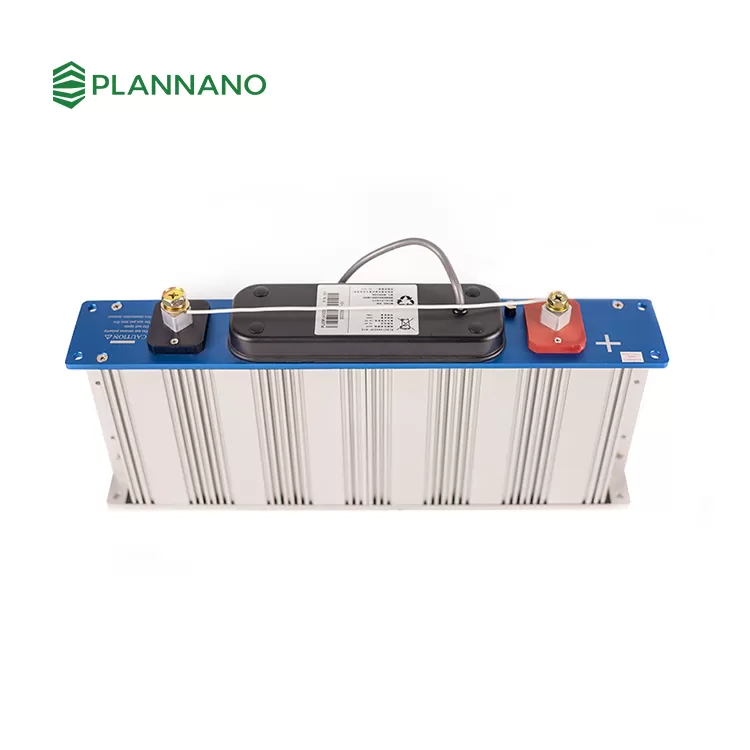

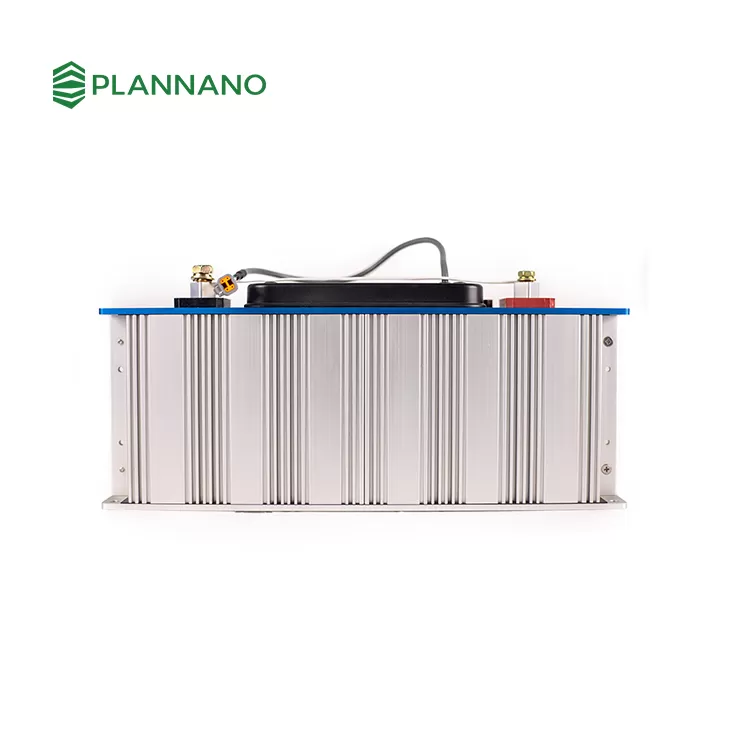

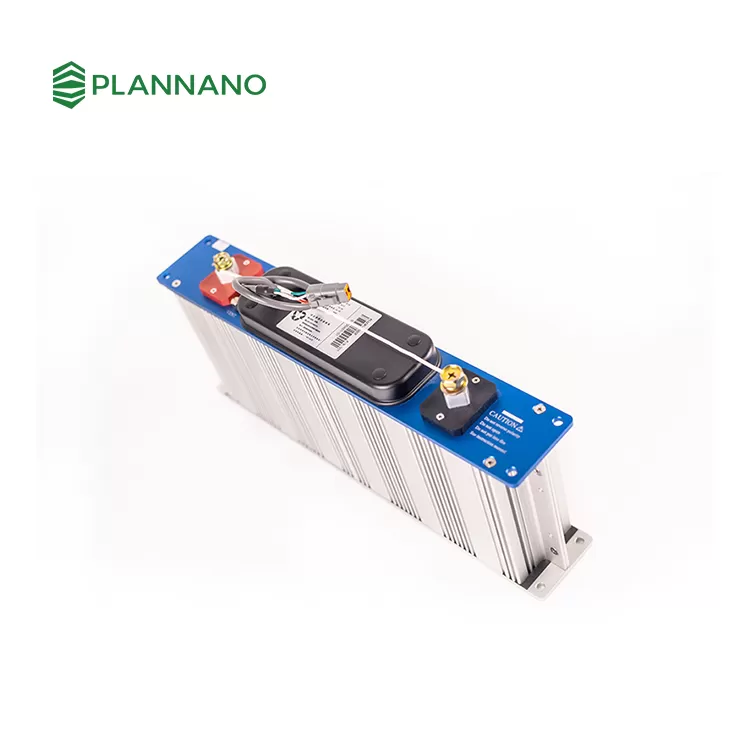

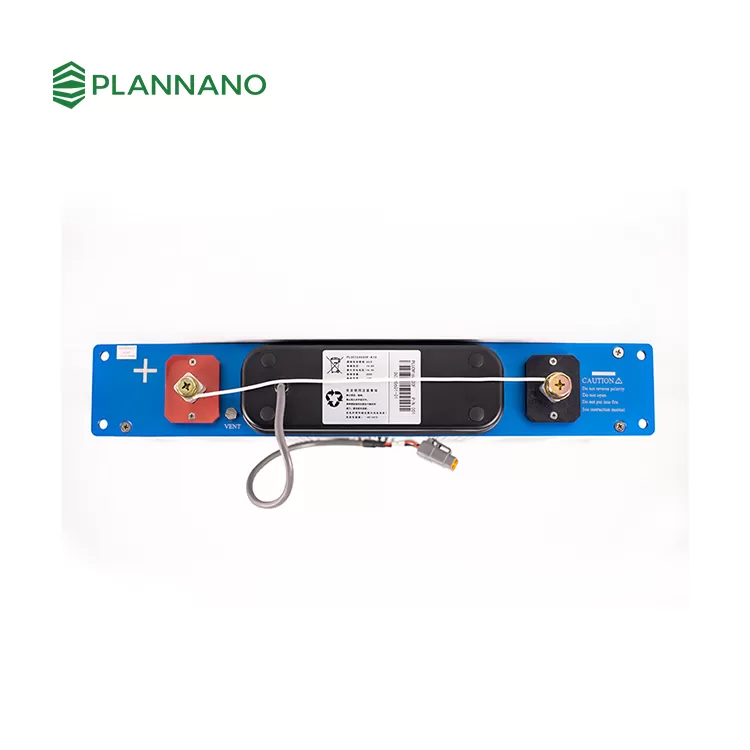

Plannano 16V 500F SuperCapacitor Module
Product Advantage
1.000,000 CYCLE LIFE
-40℃ ~ +65℃ COPERATING TEMPERATURE
SAFETY ZERO SAFETY INCIDENTS
