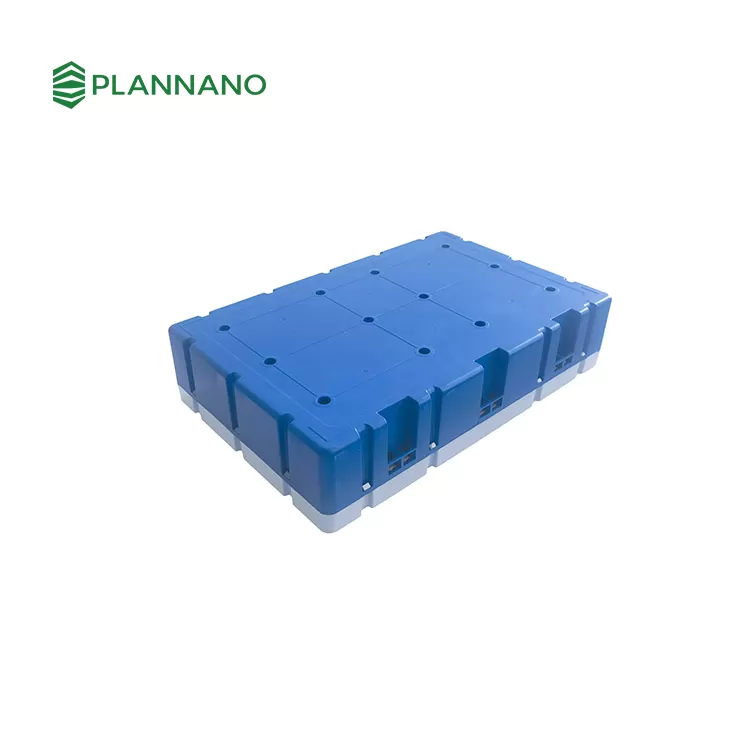

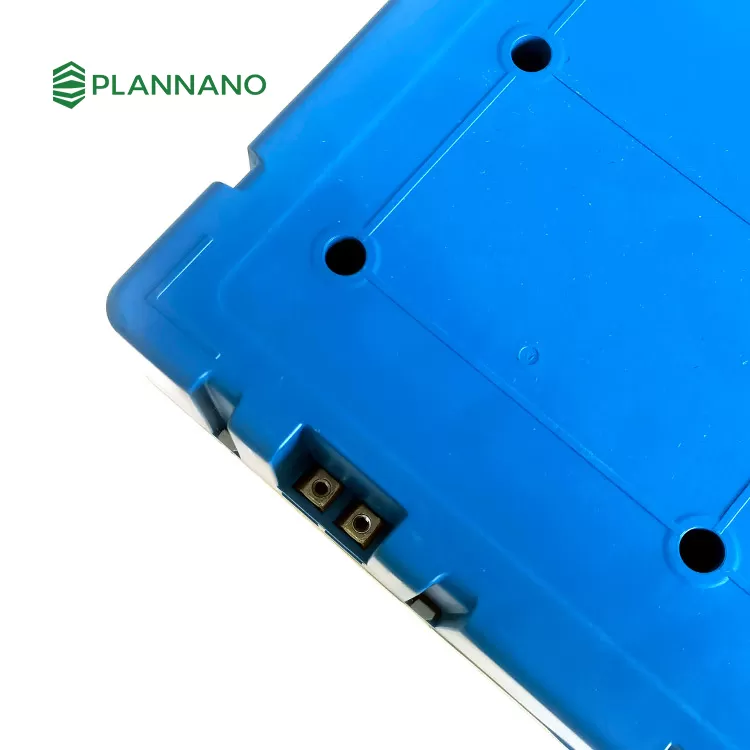

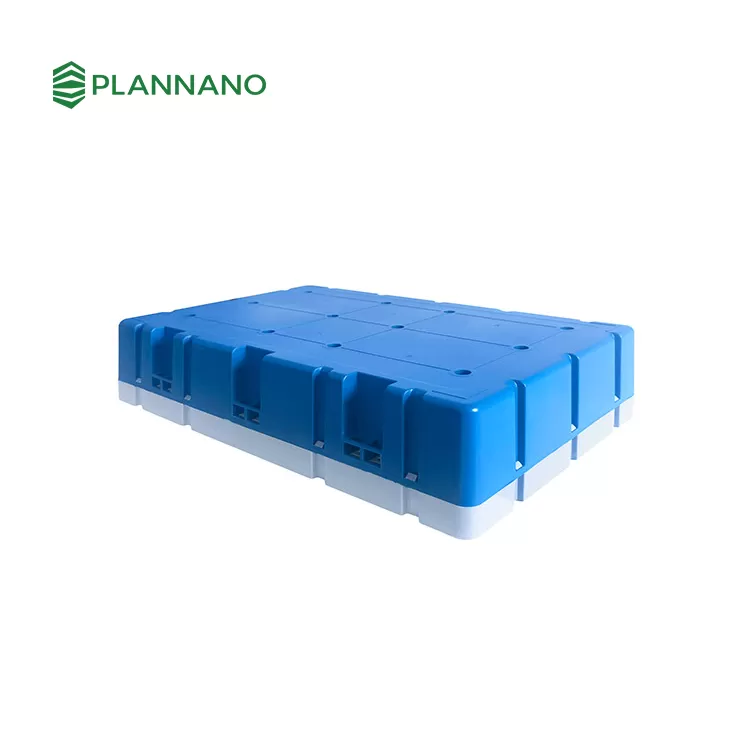

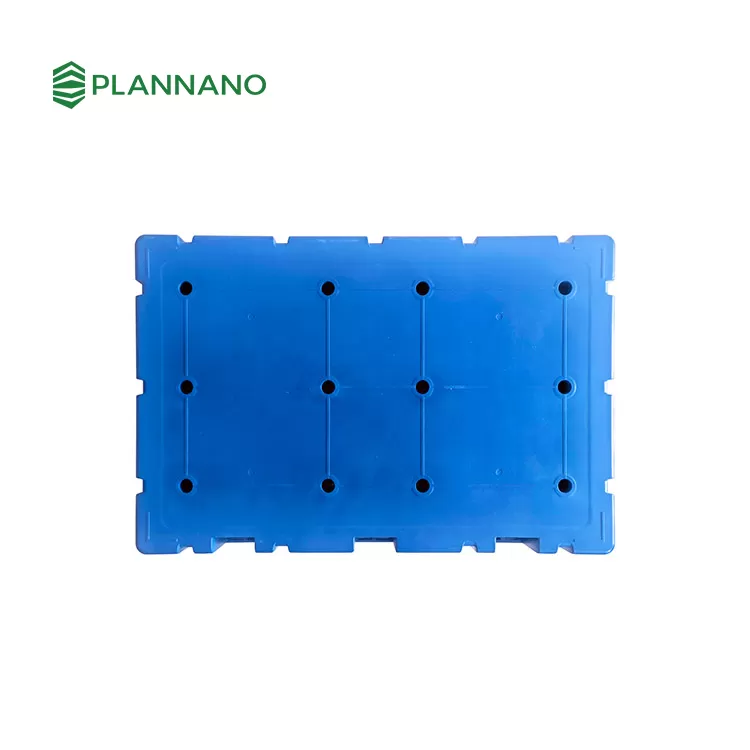

160V 5.8F SuperCapacitor Module
1.000,000 CYCLE LIFE
-40℃ ~ +65℃ COPERATING TEMPERATURE
SAFETY ZERO SAFETY INCIDENTS
Fast Charging and Discharging in seconds
Technical Parameter
Items
PLMC0012C5-0170R0A
Detail Specifications
| Items | PLMC0012C5-0170R0A |
| Rated Capacitance | 5.8F |
| Capacitance Tolerance | 0% ~+20% |
Nominal voltage VR | 160V DC |
Surge voltage VS | 168V DC |
| ESR | ≤200mΩ |
| Maximum Continuous Current IMCC (∆T=15℃) | 8A |
| Maximum Continuous Current IMCC (∆T=40℃) | 13A |
| Maximum Peak Current (1s)Imax | 40A |
| Short Circuit Current IS | 1000A |
| Leakage Current IL | 35mA（160V） |
| Self-Discharge Rate | 1≥80% |
| Maximum Storage Energy E | 20.6Wh |
| Mass Energy Density Ed | 3.4Wh/kg |
| Maximum Power Density Pmax | 5333W/kg |
| Operating Temperature Range | -40~+65℃ |
| Insulation Resistance | ≥500MΩ |
| Withstand Voltage | ≤2mA |
| Protection level | IP30 |
| Cycle Life | 500,000 cycles |
160V 5.8F SuperCapacitor Module
Product Advantage
1.000,000 CYCLE LIFE
-40℃ ~ +65℃ COPERATING TEMPERATURE
SAFETY ZERO SAFETY INCIDENTS
Fast Charging and Discharging in seconds
