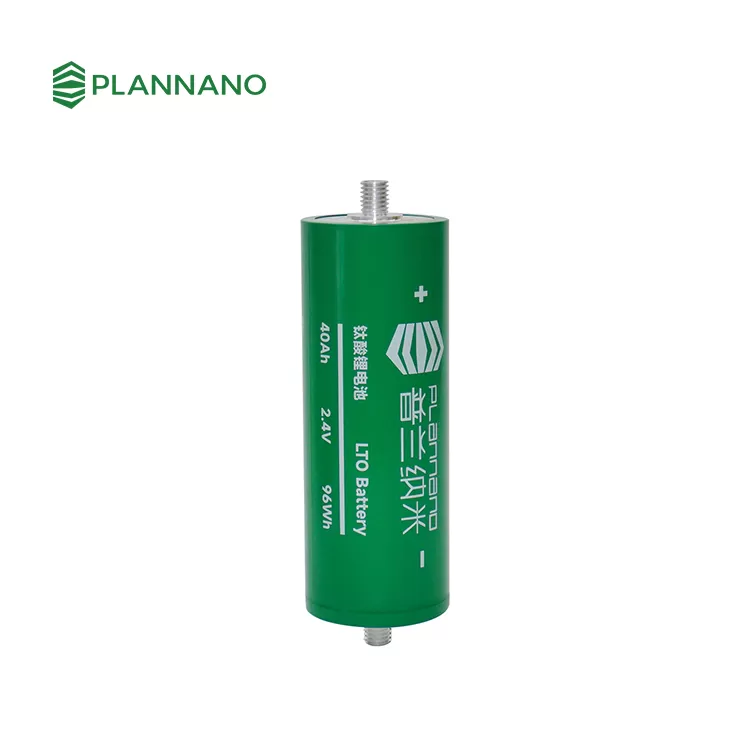

Plannano 60165 2.4V 40Ah LTO Battery Cell
2.4V 40Ah
Certification
-45°C ~ +60°C
Max. Discharging Current：20C1A(800A)
Cycle Life: 30,000 Cycles
CE IEC62619
UL
MSDS UN38.3
Technical Parameter
Items
PLITR60165CSTB-40Ah-2.4V
| Weight | ≤1100g |
| Nominal Capacity | 40Ah@1C1A(40A) |
| Nominal Voltage | 2.4V |
| Nominal Energy | 96Wh |
| Energy Density | 87.3Wh/kg |
| Resistance | ≤0.5mΩ(AC, 1000Hz)) |
| Charging cut-off voltage | 2.9v |
| Discharging cut-off voltage | 1.5v |
| Standard charging current | 1C1A(40A) |
| Standard discharging current | 1C1A(40A) |
| Max. Constant Charging Current | 4C1A(160A) |
| Max. Constant Discharging Current | 8C1A(320A) |
| Max. Charging Current | 12C1A(480A) |
| Max. Discharging Current | 20C1A(800A) |
| Operating Temperature | -45°C ~ +60°C |

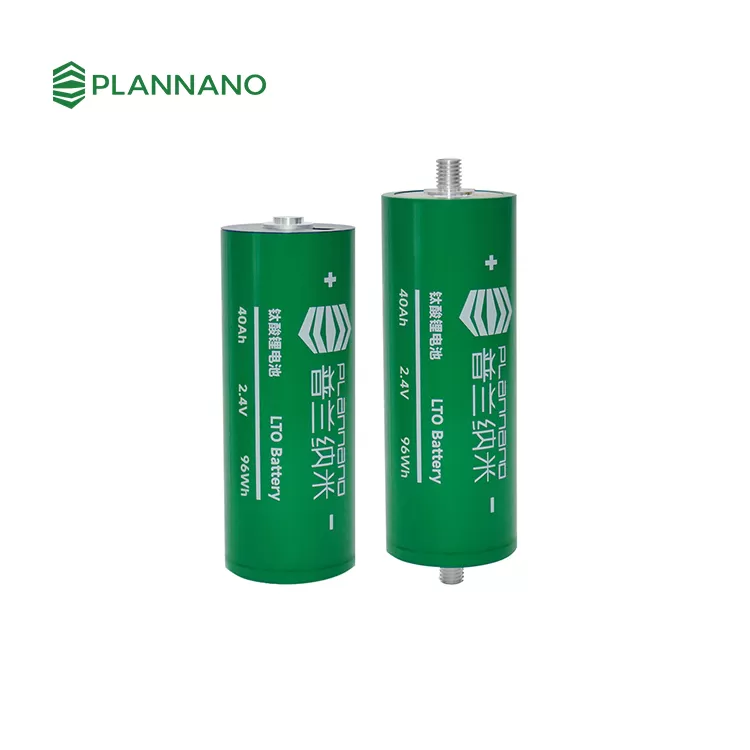

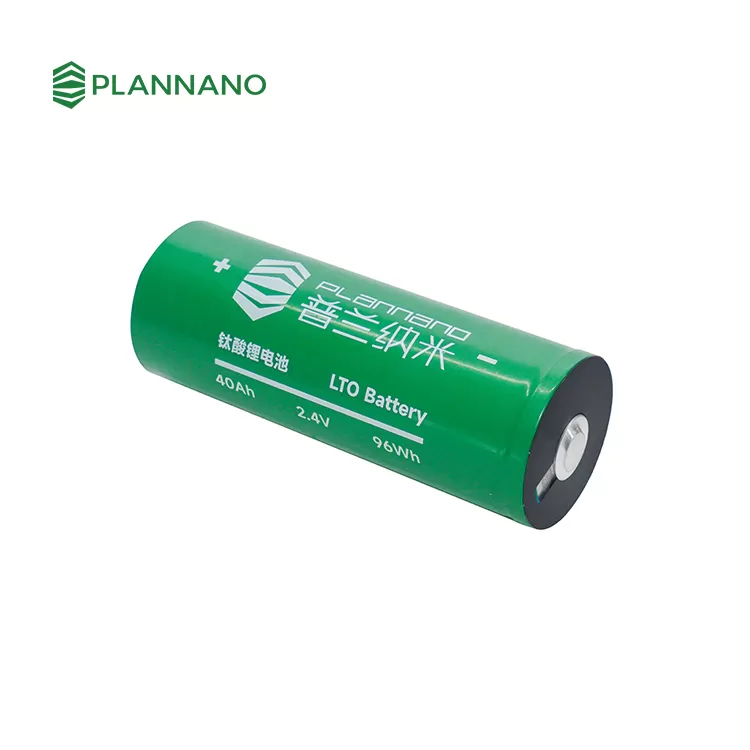

Plannano 60165 Lithium titanate Battery 2.4V 40Ah LTO Battery Cell

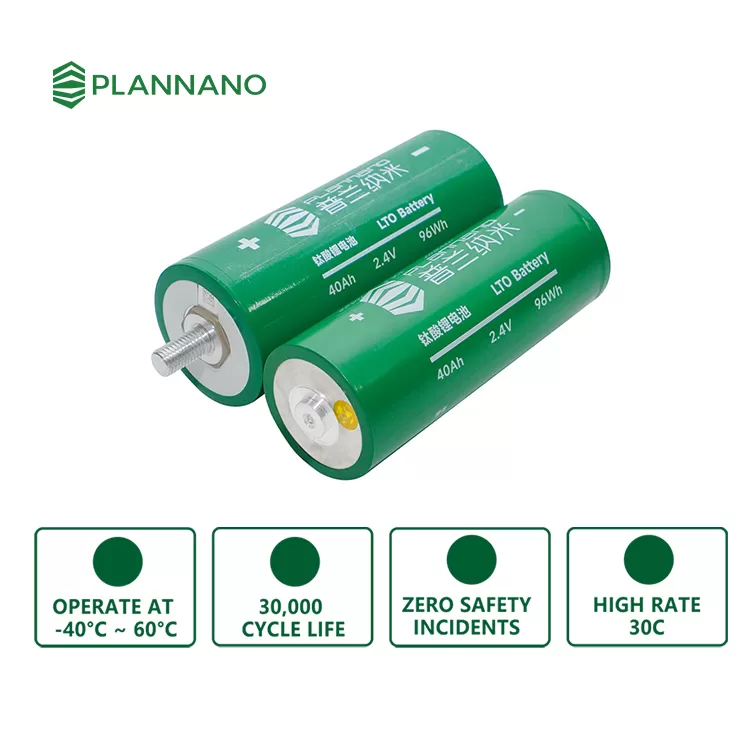

Product Advantage
High Security
No lithium precipitation, good thermal stability, realize intrinsic safety;
High Security
More than 20 years of service life
30000 Cycle
High Rate
6 minutes to fully charge, 6 minutes to empty;
Wide Temperature Resistance
Can be charged and discharged repeatedly at -50~65℃;
