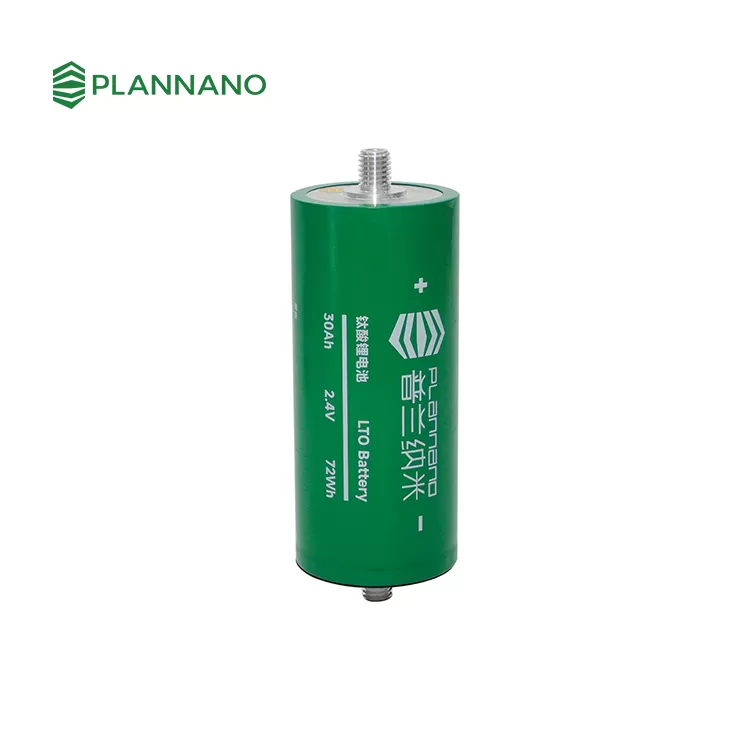

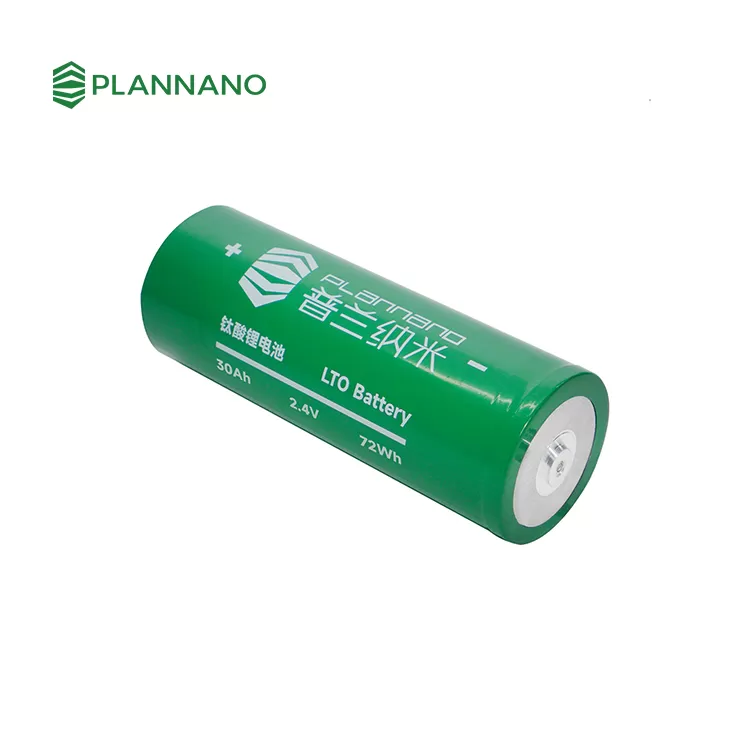

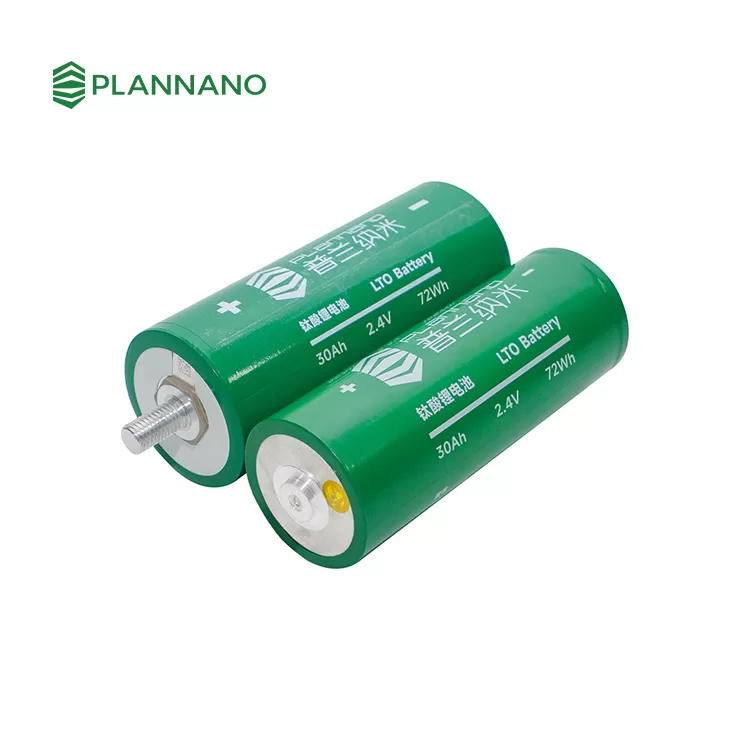

Plannano 60318 2.4V 30Ah LTO Battery Cell
2.4V 30Ah
Certification
-45°C ~ +60°C
Max. Discharging Current：10C1A(300A)
Cycle Life: 30,000 Cycles
CE IEC62619
UL
MSDS UN38.3
Technical Parameter
Items
PLITR60138CWLA-30Ah-2.4V
| Weight | ≤850g |
| Nominal Capacity | 30Ah@1C1A(30A) |
| Nominal Voltage | 2.4V |
| Nominal Energy | 72Wh |
| Energy Density | 85Wh/kg |
| Resistance | ≤0.5mΩ(AC, 1000Hz)) |
| Charging cut-off voltage | 2.8v |
| Discharging cut-off voltage | 1.5v |
| Standard charging current | 1C1A(30A) |
| Standard discharging current | 1C1A(30A) |
| Max. Constant Charging Current | 3C1A(90A) |
| Max. Constant Discharging Current | 5C1A(150A) |
| Max. Charging Current | 6C1A(180A) |
| Max. Discharging Current | 10C1A(300A) |
| Operating Temperature | -45°C ~ +60°C |
Plannano Lithium titanate Battery 60138 2.4V 30Ah LTO Battery Cell
Product Advantage
High Security
No lithium precipitation, good thermal stability, realize intrinsic safety;
Long Life
More than 20 years of service life
30000 Cycle
High Rate
6 minutes to fully charge, 6 minutes to empty;
Wide Temperature Resistance
Can be charged and discharged repeatedly at -50~65℃;
