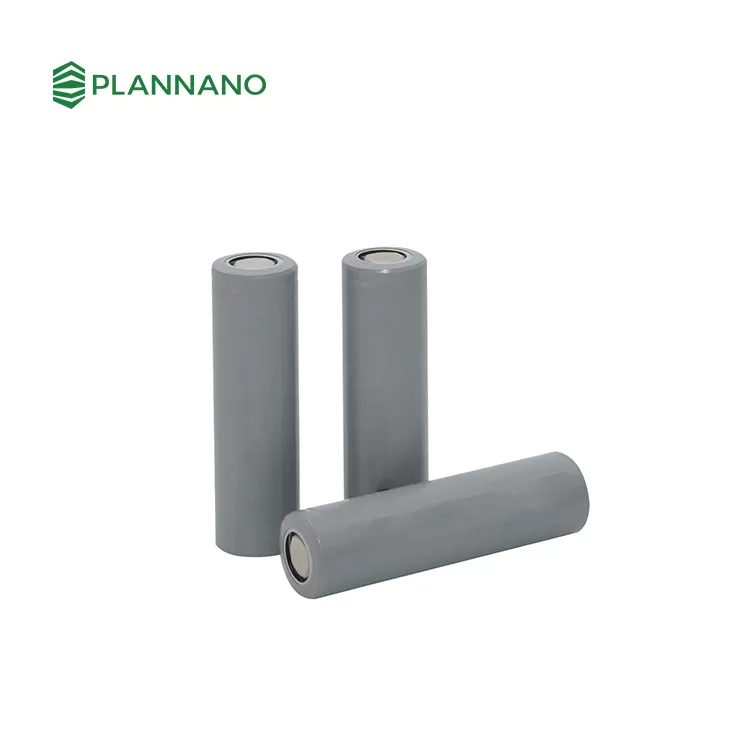

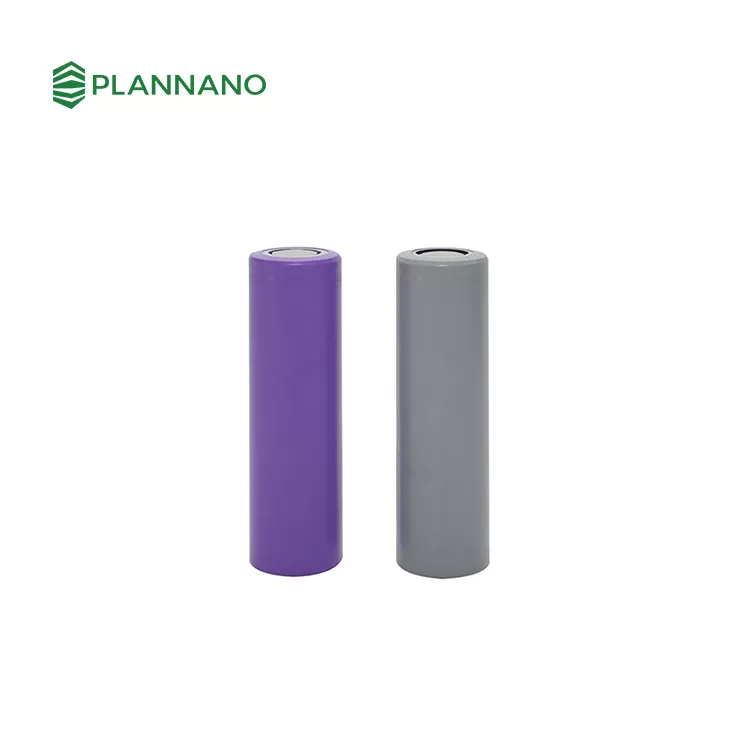

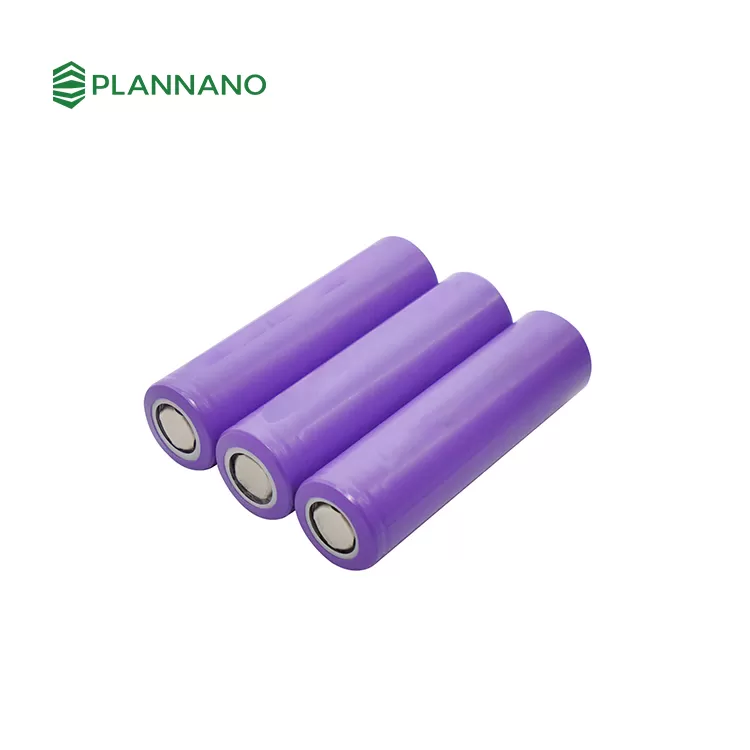

18650 2.4V 1500mAh LTO Battery
Certification
18650 LTO
CE IEC62619
UL
MSDS UN38.3
2.4V 1500mAh
-40°C ~ +60°C
High Rate 8C
Technical Parameter
Items
Specifications
| Weight | ≤45g |
| Nominal Capacity | 1500mAh@1C1A(1500mA) |
| Nominal Voltage | 2.4V |
| Nominal Energy | 50 ± 2.5Hz |
| Energy Density | 80Wh/kg |
| Resistance | ≤15mΩ(AC, 1000Hz) |
| Charging cut-off voltage | 2.7v |
| Discharging cut-off voltage | 2.3v |
| Standard charging current | 1C1A(1500mA) |
| Standard discharging current | 1C1A(1500mA) |
| Max. Constant Charging Current | 3C1A(4500mA) |
| Max. Constant Discharging Current | 5C1A(7500mA) |
| Max. Charging Current | 5C1A(7500mA) |
| Max. Discharging Current | 8C1A(12000mA) |
| Operating Temperature | -40°C ~ +60°C |
PLNANANO LTO BATTERY * All products can be customized according to customer needs
Product Advantage
Long Life
Can be used for 20 years 30000 Cycle
High Security
No lithium precipitation, good thermal stability, and intrinsic safety;
High Rate
6 minutes to fully charge, 6 minutes to empty;
Wide Temperature Resistance
Can be charged and discharged repeatedly at -50~65℃;
