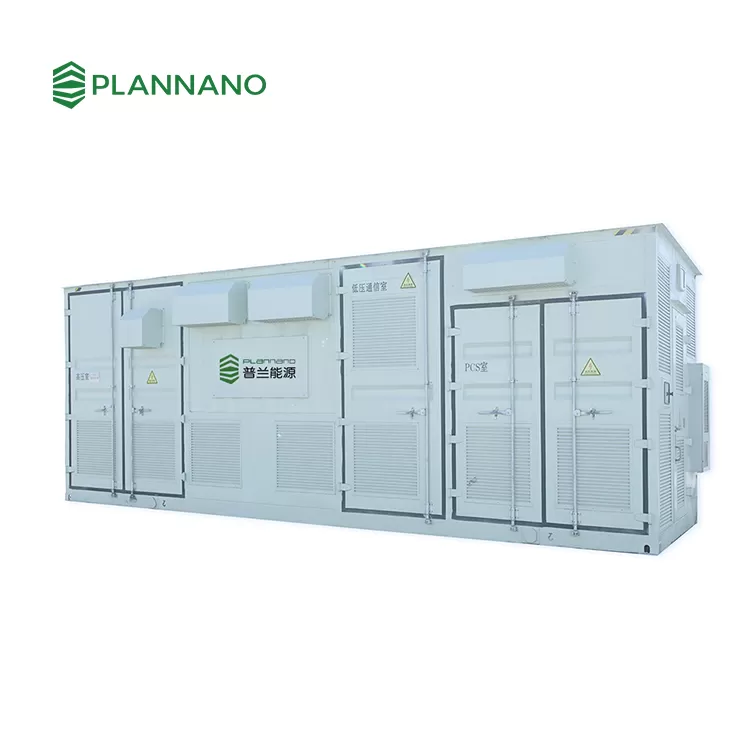

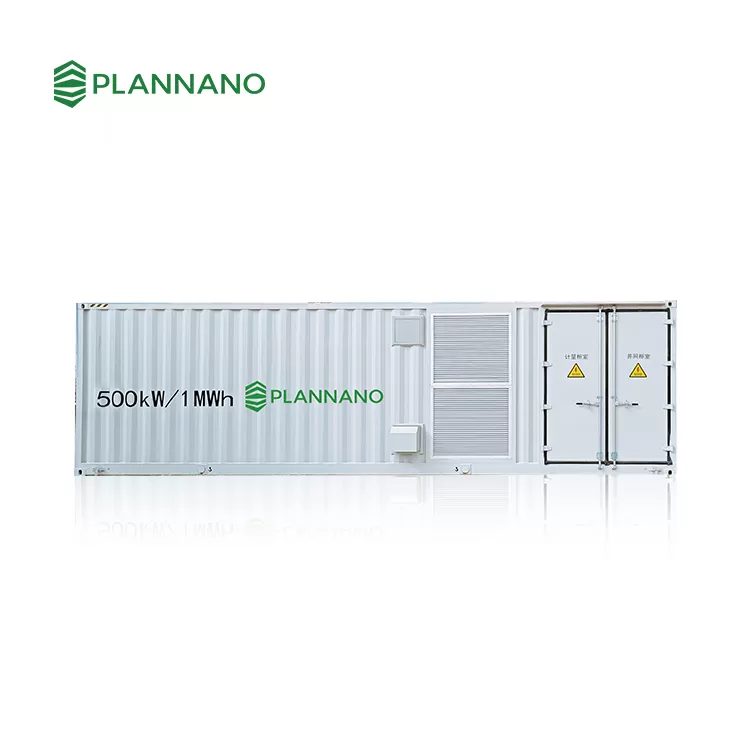

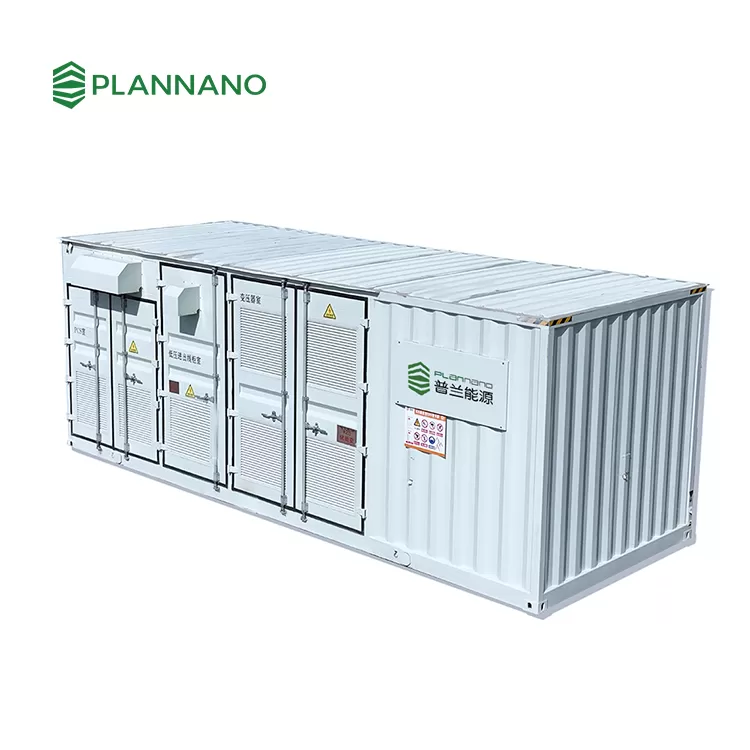

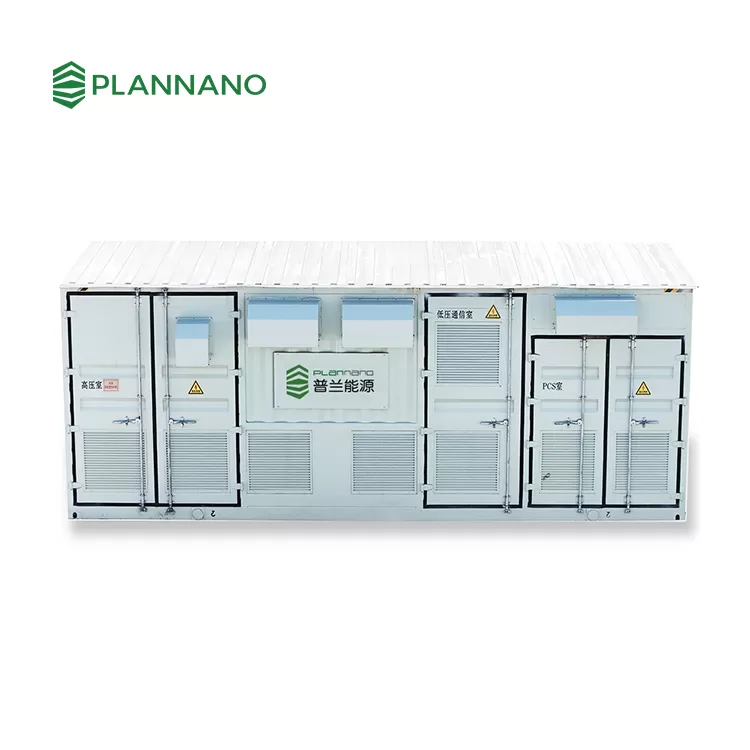

500KW 1Mwh Lifepo4 Battery Container Energy Storage System
Certification
500KW 1Mwh
CE IEC62619
MSDS UN38.3
UL
Cooling Method: Liquid Cooling
Communication Protocol: MODBUS TCP, IEC104
IP54/IP55
Technical Parameter
Specifications And Models
PLPF01400C0-0768R0A
Battery Parameter
| Cell Type | 3.2V 280Ah |
| Battery Rated Capacity | 1000kWh |
| Rated Vattery Voltage | 716.8V |
| Battery Voltage Range | 604.8~806.4V |
Grid-On Output Parameter
| Rated Output Power | 500KW |
| Maximum Output Power | 550KVA |
| Maximum Output Current | 184A |
| Rated AC Voltage | 380/400V |
| Grid voltage range | -15%~15% |
| Rated Grid Frequency | 50Hz |
Off-Grid Output Parameters
| Rated Output Power | 500KW |
| AC Rated Voltage | 380/400V |
| Output Voltage Accuracy | ≤±1% |
System Parameter
| (W x H x D) | 2600*2896*6058 |
| Weight | 16T |
| Charge and Discharge Rate | ≤0.5C |
| Protection level | IP54/IP55 |
| Corrosion Resistance | C4/C5 |
| Operating Temperature Range | -30~60℃(>40℃ derating) |
| Cooling Method | Liquid Cooling |
| Fire Fighting Method | Aerosol/Perfluorohexanone (optional) |
| Protocol | Modbus-TCP/Modbus-RTU/IEC104 |
Plannano EPC 20FT 40FT BESS ESS Container 500KW 1Mwh Lifepo4 Battery Container Energy Storage System
Product Advantage
Efficient integration
1. The system is highly integrated
integratingbattery system, AC system,
temperature controlsystem, fire control
system, data monitoringsystem, etc
2. Integrated container energy storage
systemdesign, convenienttransportation,
simple construction, low installation cost
High Precision intelligence
1. Meet smart grid design specifications
2. Integrated local controller, realize unified
scheduling management, single machine
system can independently carry out peak
cutting and valley filling
3. With PO, VF, SVG and other functions,
support the independent operation of the
power grid
4. Outdoor design, protection level IP54
High Efficiency Conversion
1. Intelligent temperature control system,
improve system efficiency and battery
cycle life
2. With two-way converter, charging with
constant current, constant voltage, constant Power model
3. Integrated transport, simple site
construction
4. Data interaction and visualization
