500KWH/1MWH/2MWH/5MWH/10MWH
Contact Us

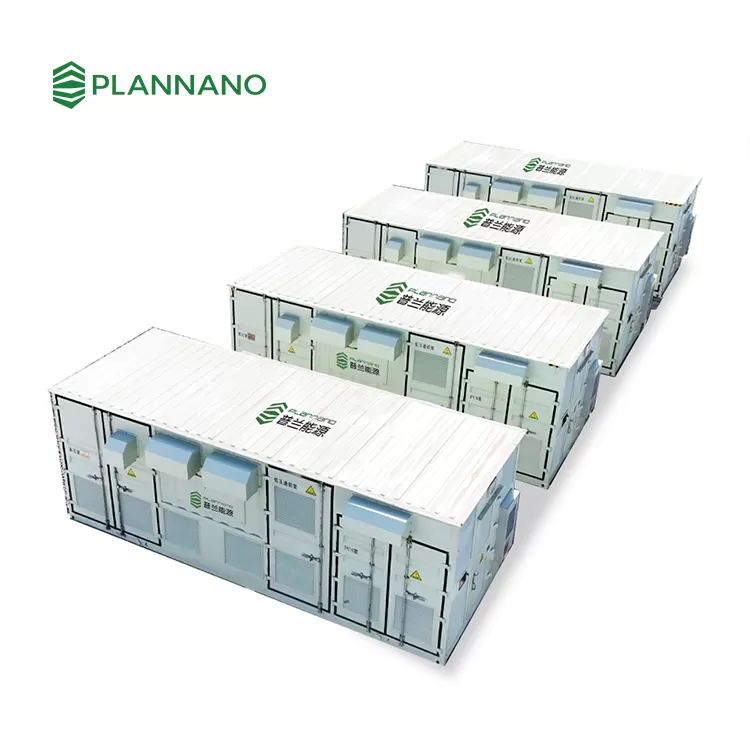

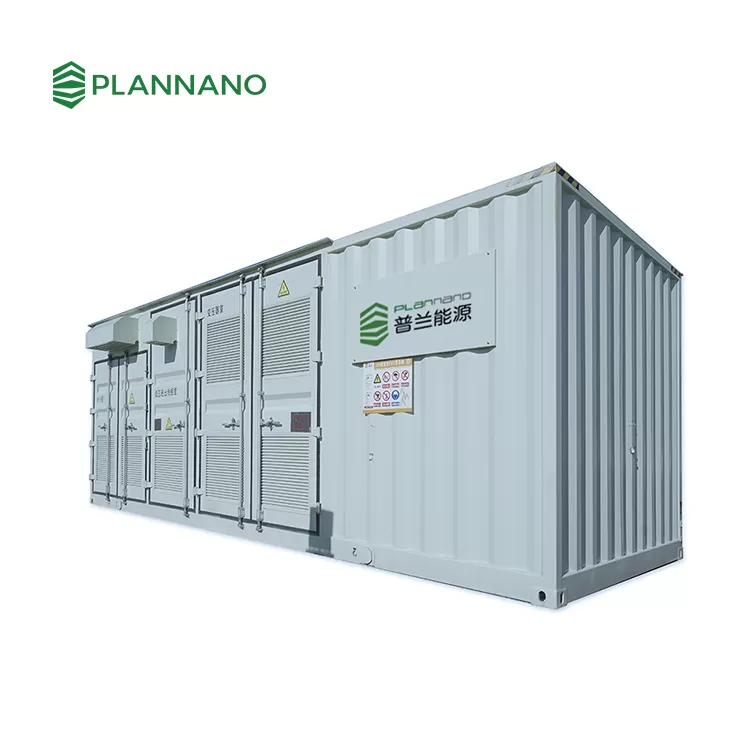

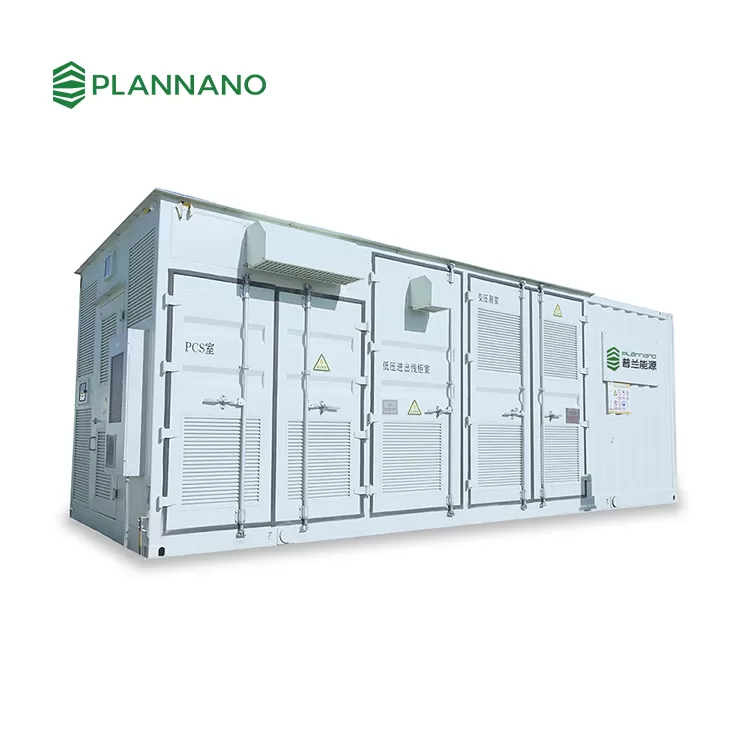

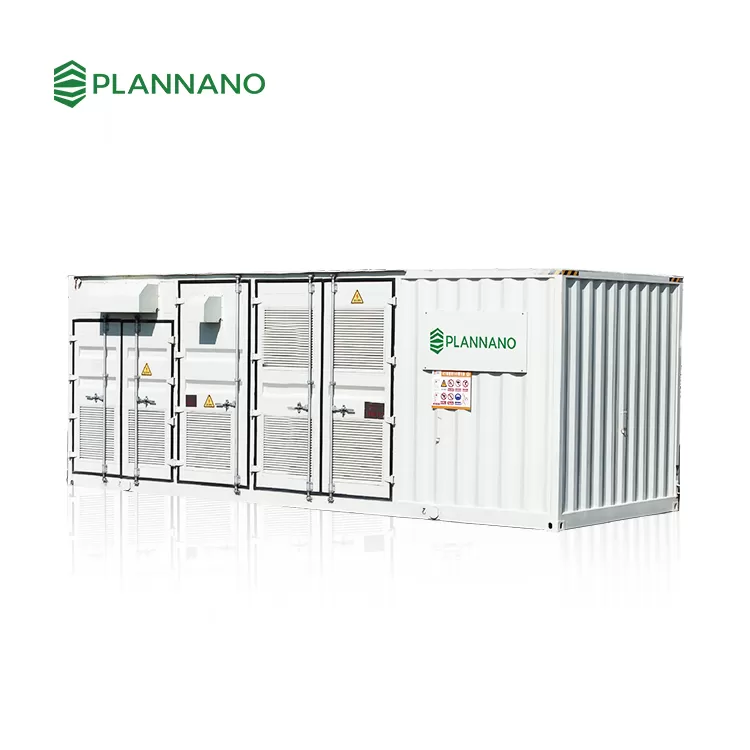

3.35MWh Liquid-Cooled Container-Type Energy Storage System For Industrial & Commercial
Certification
3.35Mwh
CE IEC62619
MSDS UN38.3
UL
Cooling Method: Liquid Cooling
Communication Protocol: MODBUS TCP, IEC104
IP54/IP55
Technical Parameter
Specifications And Models
PLSF2800C0-335R0A
Battery Parameter
| Cell Type | 3.2V 280Ah |
| Battery Rated Capacity | 3.345M |
| Rated Vattery Voltage | 1331.2V |
| Battery Voltage Range | 1040~1497.6V |
System Basic Parameters
| (W x H x D) | 2600*2896*6500 |
| Weight | 32T |
| Charge and Discharge Rate | ≤0.5C |
| Protection level | IP54/IP55 |
| Corrosion Resistance | C4/C5 |
| Operating Temperature Range | -30~60℃(>40℃ derating) |
| Cooling Method | Liquid Cooling |
| Fire Fighting Method | Aerosol/Perfluorohexanone (optional) |
| Protocol | Modbus-TCP/Modbus-RTU/IEC104 |
Battery Pack Parameter
| Rated Voltage | 166.4V |
| Rated Capacity | 280AH |
| Voltage Range | 130～189.8V |
| Total Energy | 46.5kWh |
| Pack Configuration | 1P52S |
| Available SOC Range | 0~100% |
| Rated Charging Current | 140A |
| Peak Charging Current | 280A |
| Rated Discharging Current | 140A |
| Peak Discharging Current | 280A |
| Working Temperature | Charging：0～60℃ Discharging：-30～60℃ |
| Ambient Relative Humidity | 5%~95% |
| Cooling Method | Liquid cooling |
3.35MWh Liquid-Cooled Container-Type Energy Storage System For Industrial & Commercial
Product Advantage
High Efficiency Conversion
1. Intelligent temperature control system,
improve system efficiency and battery
cycle life
2. With two-way converter, charging with
constant current, constant voltage, constant Power model
3. Integrated transport, simple site
construction
4. Data interaction and visualization
High Precision intelligence
1. Meet smart grid design specifications
2. Integrated local controller, realize unified
scheduling management, single machine
system can independently carry out peak
cutting and valley filling
3. With PO, VF, SVG and other functions,
support the independent operation of the
power grid
4. Outdoor design, protection level IP54
High Efficiency Conversion
1. Intelligent temperature control system,
improve system efficiency and battery
cycle life
2. With two-way converter, charging with
constant current, constant voltage, constant Power model
3. Integrated transport, simple site
construction
4. Data interaction and visualization
