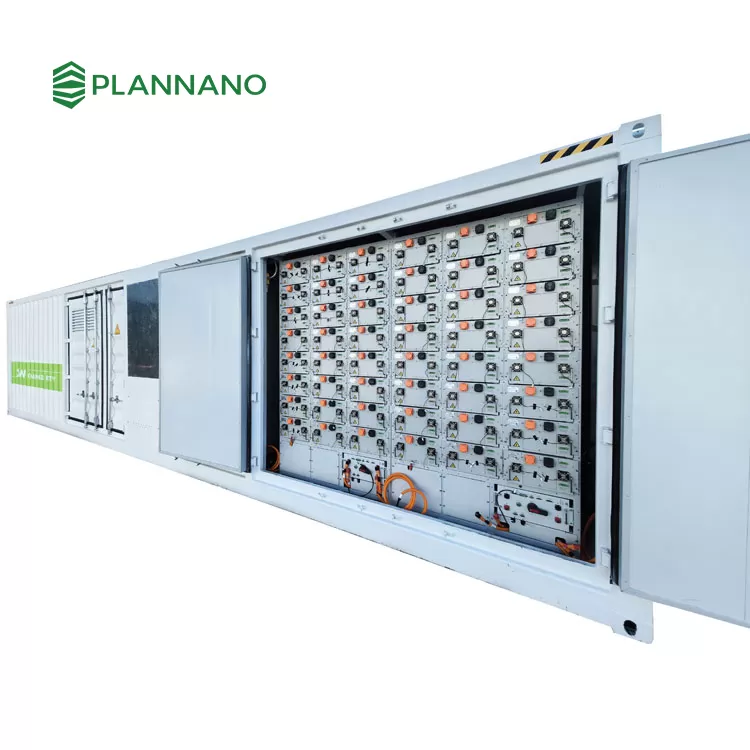

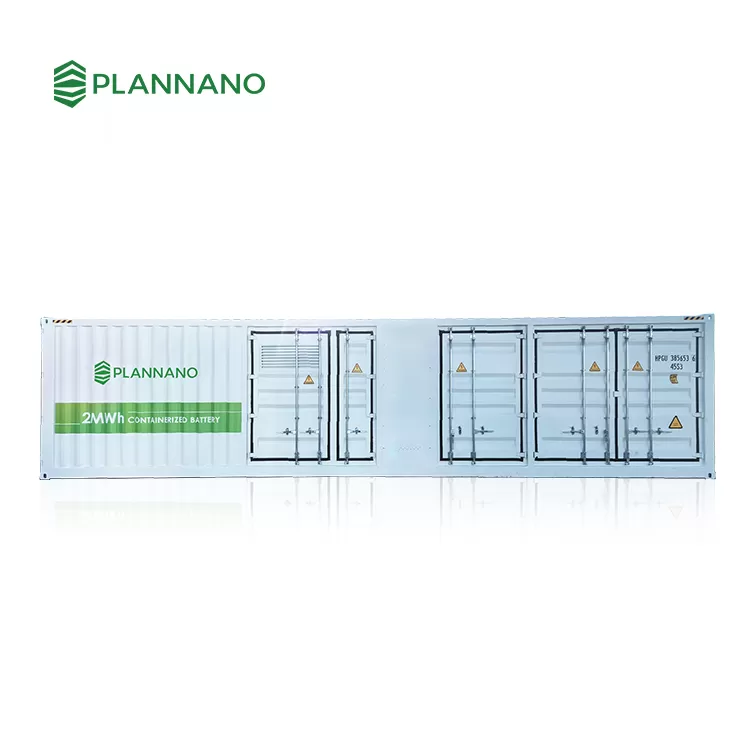

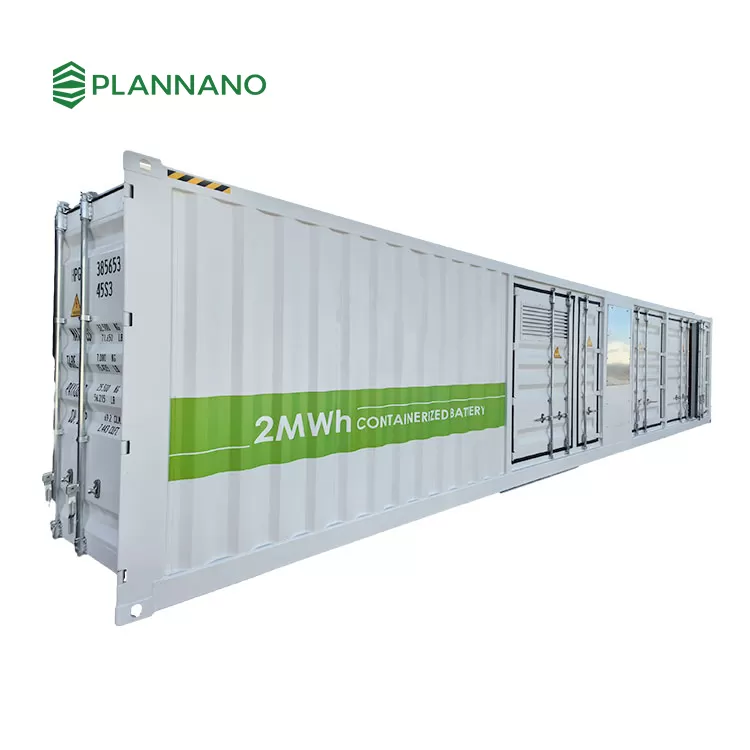

1MW 2Mwh Lifepo4 Battery Container Energy Storage System
Certification
1MW 2Mwh
CE IEC62619
MSDS UN38.3
UL
Cooling Method: Liquid Cooling/Air Cooling
Communication Protocol: MODBUS TCP, IEC104
IP54/IP55
Technical Parameter
Specifications And Models
PLSF2800C0-768R0A Product
DC Side Parameter
| Battery Rated Capacity | 2150.4kWh |
| Rated Voltage | DC 648V~864V |
| Rated Vattery Voltage | 1400A |
| Battery Voltage Range | 1800A |
AC Side Parameters (ON Grid)
| Communication Access Method | Three-phase four-wire + ground wire ( 3W+N+PE |
| Rated Power | 1000KW |
| Rated Voltage | 400V |
| Rated Current | 1444A |
| Rated Grid Frequency | 50Hz/60Hz |
| Grid Frequency Range | 45~55/55~65(Configurable) |
| Maximum Efficiency | 97.5% |
AC Side Parameters (Off-Grid)
| Rated Voltage | 400V |
| Rated Frequency | 50Hz/60Hz |
| Overload Capacity | 110% Long-Term |
System Parameter
| (W x H x D) | 12192*2438*2896mm |
| Weight | 42T |
| Working Temperature | -20℃～+50℃ |
| Protection level | IP54/IP55 |
| Corrosion Resistance | C4/C5 |
| Operating Temperature Range | -30~60℃(>40℃ derating) |
| Cooling Method | Liquid Cooling |
| Fire Fighting Method | Aerosol/Perfluorohexanone (optional) |
| Protocol | Modbus-TCP/Modbus-RTU/IEC104 |
Plannano EPC 20FT 40FT BESS ESS Container 1MW 2Mwh Lifepo4 Battery Container Energy Storage System
Product Advantage
High Efficiency Conversion
1. Intelligent temperature control system,
improve system efficiency and battery
cycle life
2. With two-way converter, charging with
constant current, constant voltage, constant Power model
3. Integrated transport, simple site
construction
4. Data interaction and visualization
High Precision intelligence
1. Meet smart grid design specifications
2. Integrated local controller, realize unified
scheduling management, single machine
system can independently carry out peak
cutting and valley filling
3. With PO, VF, SVG and other functions,
support the independent operation of the
power grid
4. Outdoor design, protection level IP54
High Efficiency Conversion
1. Intelligent temperature control system,
improve system efficiency and battery
cycle life
2. With two-way converter, charging with
constant current, constant voltage, constant Power model
3. Integrated transport, simple site
construction
4. Data interaction and visualization
