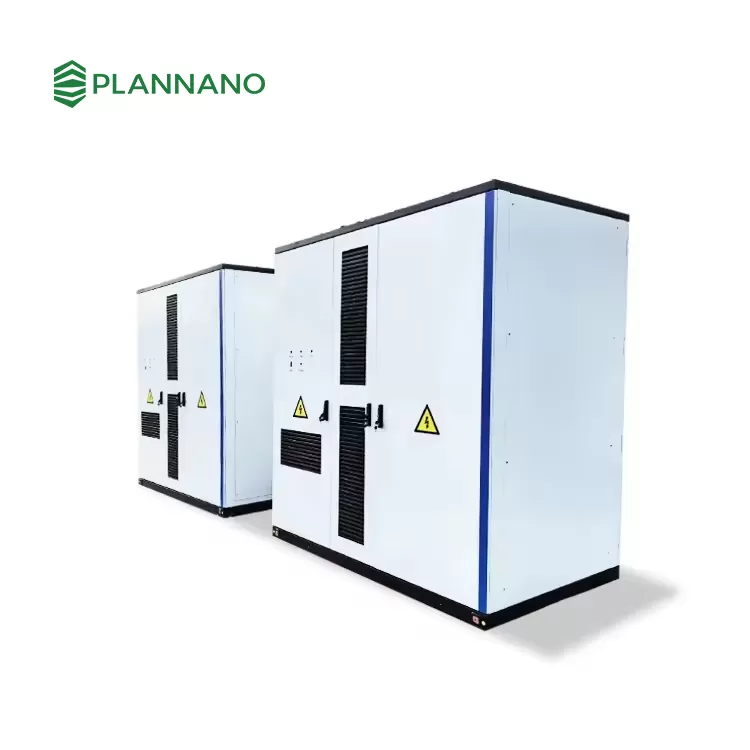

200KW 372KWH Liquid Cooling Commercial & industrial Energy Storage Systems
200kw 372kwh Commercial & Industrial Energy Storage Systems
Certification
200KW 372Kwh
CE IEC62619
MSDS
UN38.3
Cooling Method: Liquid Cooling
Communication Protocol: MODBUS TCP, IEC104
Cycle Life: 7000 Cycles
Technical Parameter
Specifications And Models
PLSF0280C0-1331R2A
Battery Parameter
| Cell Type | 3.2V 280Ah |
| System Series and Parallel Parameters | 1P416S |
| System Capacities | 372.736KWh |
| Rated Voltage | 133.12V |
| Working Voltage | 1123.2~1497.6V |
Grid-On Output Parameter
| Rated Output Power | 200KW |
| Maximum Output Power | 220KVA |
| Maximum Output Current | 184A |
| Rated AC Voltage | 690V |
| Grid voltage range | -15~+10% |
| Rated Grid Frequency | 50Hz |
Off-Grid Output Parameters
| Rated Output Power | 200KW |
| Working temperature | 220KVA |
| Maximum Output Current | 184A |
| AC Rated Voltage | 690V |
| Output Voltage Accuracy | 1% |
System Parameter

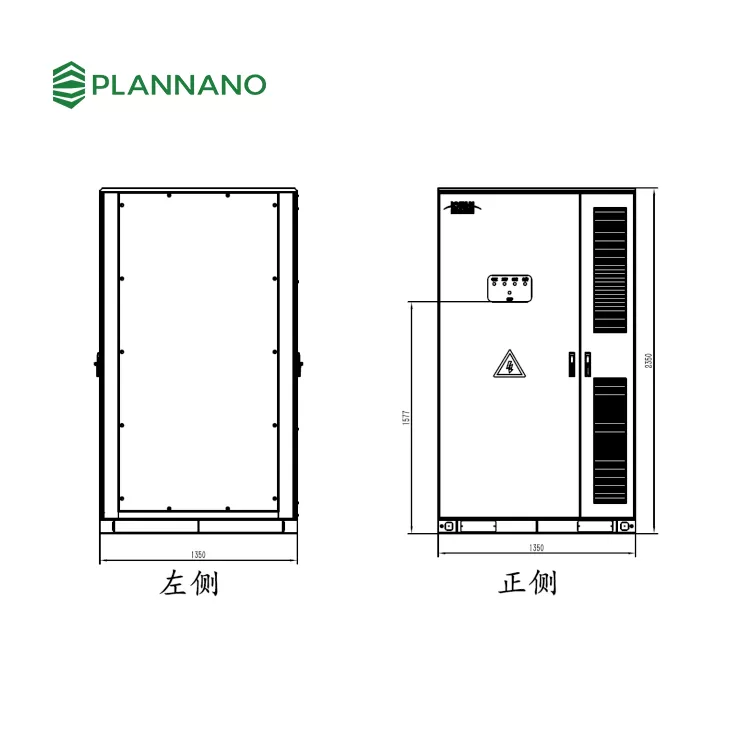

| (W x H x D) | 2300X2500X1400mm |
| Weight | 4.5T |
| Protection level | IP54/IP55 |
| Corrosion Resistance | C4/C5 |
| Operating Temperature Range | -30~60℃(>40℃ derating) |
| Cooling Method | Liquid Cooling |
| Fire Fighting Method | Aerosol/Perfluorohexanone (optional) |
| Protocol | Modbus-TCP/Modbus-RTU/IEC104 |

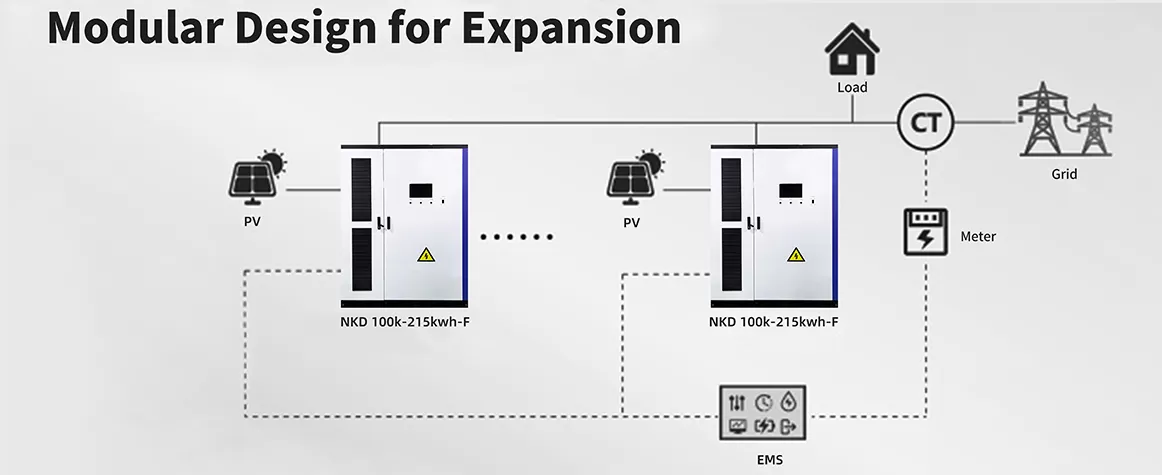

-PLANNANO-200KW 372KWH Commercial and Industrial Energy Storage System Diagram Topology Diagram
Product Advantage
Efficient Conversion
① Intelligent temperature control system, improve system efficiency and battery cycle life;
②With bi-directional variable current, charging with constant current, constant voltage and constant power mode;
③Reduce the loss of parallel mismatch between battery clusters;
Avoiding the system risk of inter-cluster circulation.
High Precision Intelligence
①Satisfy smart grid design specifications;
② Integrate local controllers to realize unified scheduling management, and the stand-alone system can independently perform peak shaving and valley filling;
③ Equipped with PQ, VF, SVG and other functions, supporting the function of independent operation of microgrid;
④ Outdoor type design, protection grade IP54.
Easy and Flexible

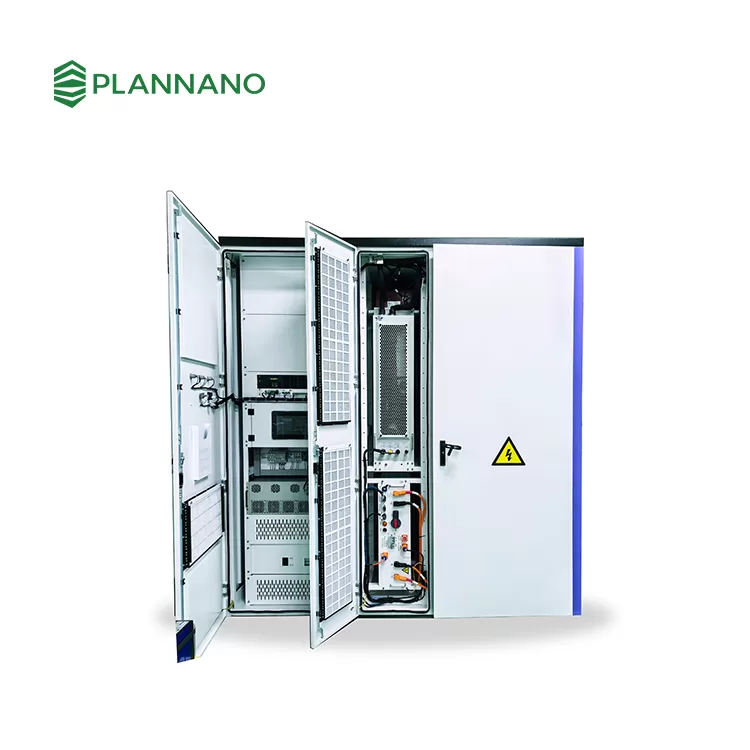

① AC side PCS adopts modularized design for easy installation and maintenance;
② support multiple PCS AC parallel operation configuration program more flexible;
③Integrated transportation, on-site construction simple data interaction visualization.
